MoIN is a turnkey software platofrm for professional audio contribution and distribution. It seamlessly encodes, decodes and transcodes multiple audio channels in parallel. Designed for broadcasters and media organizations, MoIN can be deployed on dedicated hardware, virtual machines or in the cloud, providing a reliable and scalable solution without the complexity of building and operating your own software platform.
Key Benefits
Turnkey Solution: software, operating system, management tools and support in one package – your team works on audio, not on infrastructure.
Hybrid by design: Combination of MoIN and 2wcom hardware products as a comprehensive and reliable solution.
One software instead of point solutions: contribution, STL, distribution, web streaming and DAB+/µMPX in one solution – one operating concept, one support contact.ne operating concept, one support contact.
A translator, not just a transporter: parallel encoding, decoding and transcoding.
Comprehensive codec support: unmatched interoperability with 18 codecs included, even more available as upgrade options.
Interoperability down to the clock: NTP, PTPv2 and sample rate conversion combine sources with different sample rates and clock domains in one channel.
Robustness without a lock-in decision: PRO MPEG FEC, dual streaming, SRT and RIST in one platform – choose the protection per link.
Main Features
Flexible Software Solution
Software solution for audio-over-IP distribution
Interoperability with all 2wcom hardware products
Support of all common audio coding formats for contribution, distribution and streaming
Multiple deployment methods to ensure the best integration into already existing broadcast environments
Various features like list view and SIP call manager included
Upgradeable with software options according to your needs
Support via SLA available
Control Center
Single pane of glass (SPOG): unified dashboard for all 2wcom software applications in a single centralized view
Allows orchestration, monitoring and configuration fo all integrated 2wcom software
Includes network settings, NTP and PTP configuration and license management
Installation Methods
Installation via cloud-init image with a Proxmox or VMware ESXi server
Installation as a standalone application on a Linux server using Docker Note: The validated reference environment is Ubuntu 24.04 LTS or higher with Docker v29.0 or higher. Other Linux distributions may also be compatible, provided they support the required Docker version.
Specifications →
Versatile Compatibility – Complete Audio Codec Support
Adaptability for audio contribution in varied network conditions with codecs like Opus, Enhanced aptX (E-aptX) and xHE-AAC
Optimized studio-to-transmitter links (STL) with efficient coding formats like MPEG-Layer 2 and AAC-LC; ensure highest fidelity and minimal latency with bit-transparent transmission of digital audio
Professional audio streaming: Efficient generation of web streams supporting mp3, OGG, Opus and the complete AAC family
Specialized broadcasting support: Integrates seamlessly and enables DAB+ encoding* with specialized options
Smooth Integration – Compatible with various Audio over IP Formats
2wcom provides robust network connections by combining multiple proven technologies to deliver your audio even in stressful conditions.
Unicast, multiple unicast, and multicast for maximum network control
Proven multimedia transport protocols such as UDP and RTP
Multiplex and de-multiplex from MPEG-TS over IP
Well-established audio protocols such as AES67, SMPTE ST 2110, Livewire and RAVENNA*
Uses Network Time Protocol (NTP) or PTPv2 to synchronize audio input and output across devices
Handles all audio signals, also based on different clocks
Sample rate converter (SRC) to combine different connections with different sample rates or different clocks
Smart Management and Seamless Integration
Well-established APIs and physical control seamlessly integrate into your current infrastructure: Rest API, Ember+, SNMP and NMOS
Stay informed: Flexibly configurable alarm events and notifications over SNMP
*optional
Deployment Methods →

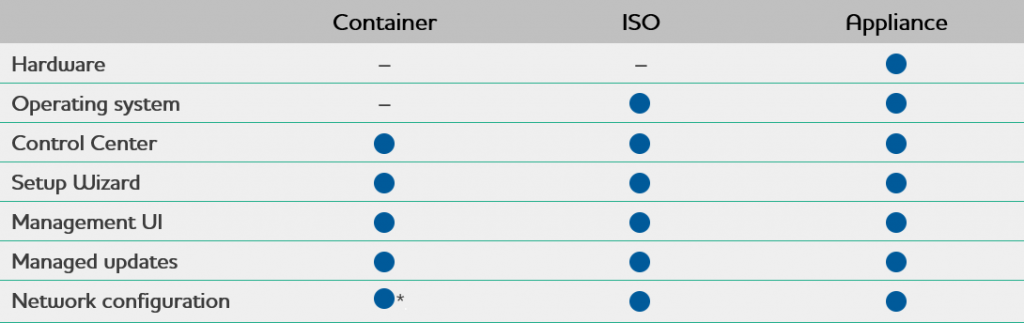

MoIN is available for 3 different deployment methods. This enables you to choose the deployment that fits your existing infrastructure the best. The table below shows the differences between the three deployment methods: MoIN as a container, MoIN installed with ISO and MoIN as an appliance.
*Requires netplan to be available on the host system.
If the deployment methods listed above do not fit your requirements and you would like to integrate MoIN into your existing infrastructures, we offer the MoIN Integration Toolkit (LINK).
Editions+Upgrade Options →

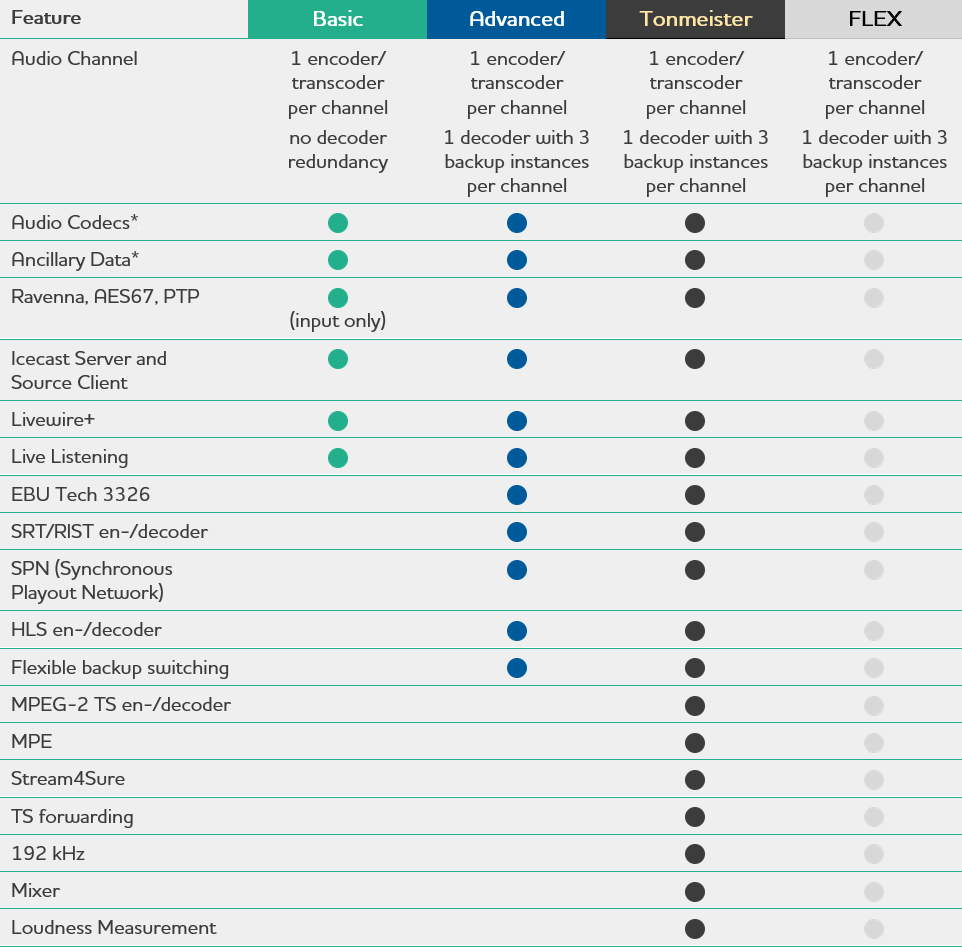

MoIN is available in 4 different editions. Even after you purchase a MoIN Edition, you can change the edition according to your requirements. Alternatively, you can customize your MoIN with MoIN Flex
(for more information see the datasheet in Downloads).
The table below shows all editions in comparison:
*Included in every edition.
Additionally to the options connected to the MoIN editions, there are even more upgrade options that can be seperately added to your MoIN application. These upgrade options are listed in the datasheet in Downloads.
